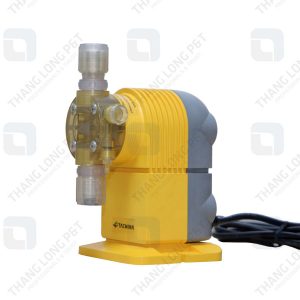

Solenoid driven diaphragm metering pump- PZ

+ Max discharge volume : 100mL/m
+ Max discharge pressure: 1.5MPa
* Advantages :
+ Wide voltage range
+ Easy operation.
+ Tough body, easy mainternance
+ Extensive selection of liquid – end materials.
+ IEC standard
* Application:
+ Electronics, Batteries, Optical film industries
+ Fine chemical
+ Machines and Automobiles
+ Pull and paper, iron and metal.
+ Food and drink
+ Pharmaceutical and cosmetics
+ Waste water
+ Inks, ceramic…
+ Dechlorination treatment of RO film process
+ Chemical injection/ chemical injection for boiler

LIÊN HỆ VỚI CHÚNG TÔI

Nút số điện thoại liên kết tới Zalo với logo Zalo
Nút số điện thoại liên kết tới Zalo với logo Zalo

Model

30R/30 60R/60 100R/100
VTCE VTCF FTCE FTCF FTCT 6TCT VTCET
for injection of boiler chemicals
VTCE VTCF FTCE FTCF FTCT 6TCT VTCE VTCF FTCE FTCF FTCT 6TCT
Max.discharge volume ml/min 30 27 28.00 60 55 100 95
L/h 1.8 1.6 1.68 3.6 3.3 6.0 5.7
Max.discharge pressure Mpa 0.7 [1.0] 0.5 1.5 0.7 [0.8] 0.5 0.4
Bar 7.0 [10] 5.0 15.0 7.0 [80] 5.0 4.0
