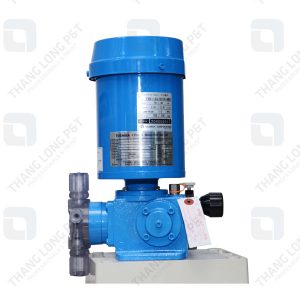

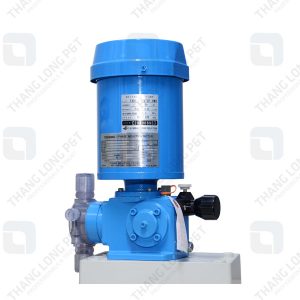

Model : 0.03～4 (Max.dischage volume : 0.03～4 L/min)
| Model | FXD . FYD . FXW . FYW | |||||||||||
| 003 | 006 | 01 | 02*² | 03 | 06 | 08*³ | 1 | 2 | 3*² | 4 | ||
| Max. discharge volume (50Hz/60Hz)*¹ | L/min | 0.03/0.036 | 0.05/0.06 [0.06/0.072] |
0.1/0.12 | 0.2/0.24 | 0.3/0.36 | 0.6/0.72 | 0.83/1 | 1/1.2 | 1.5/1.8 | 2.5/3 | 3.3/4*⁴ |
| L/h | 1.8/2.16 | 3/3.6 [ 3.6/4.32] |
6/7.2 | 12/14.4 | 18/21.6 | 36/43.2 | 49.8/60 | 60/72 | 90/108 | 150/180 | 198/240 | |
| US G/h | 0.48/0.57 | 0.79/0.95 [0.95/1.14] |
1.6/1.9 | 3.2/3.8 | 4.8/5.7 | 9.5/11.4 | 13.1/15.8 | 15.8/19 | 23.8/28.5 | 39.6/47.5 | 52.3/63.4 | |
| Max. discharge pressure | MPa | 1*⁵ | 1*⁶ | 0.5 | 0.3 | 0.3*⁴ | ||||||
| bar | 10 | 10 | 5 | 3 | 3 | |||||||
| psi | 145 | 145 | 72.5 | 43.5 | 43.5 | |||||||
*1 Value in [ ] are for motor attachment direction horizontal type “Y”.
*2 Motor attachment direction vertical type ”X” only.
*3 Can only be selected if Liquid end material are ” VECE” or ”VESE” for the direct drive diaphragm type
*4 For the direct drive diaphragm type and diaphragm PTFE, discharge volume: 3L/min, 3.6 L/min (60Hz), discharge pressure 0.25MPa
*5 Hose connection for Liquid end materials ”STST” : 0.5 MPa
*6 Hose connection for Liquid end materials ”STST”, ”FTCE”, ”FTCF’, or ”FTCT”: 0.5 MPa
Model：3P～30（Max.discharge volume：3～30L/min）
| Model | FXD . FXW | |||||||||
| 3P | 6 | 8 | 10 | 10P | 15 | 20 | 20P | 30 | ||
| Max. discharge volume (50Hz/60Hz) | L/min | 3/3.6 | 5.6/6.8 | 7.2/8.6 | 12-Oct | 12-Oct | 13.3/16 | 17.5/21 | 17.5/21 | 25/30 |
| L/h | 180/216 | 336/408 | 432/516 | 600/720 | 600/720 | 798/960 | 1050/1260 | 1050/1260 | 1500/1800 | |
| US G/h | 47.5/57 | 88.7/107.7 | 114/136.2 | 158.4/190.1 | 158.4/190.1 | 210.7/253.4 | 277.2/332.6 | 277.2/332.6 | 396/475.2 | |
| Max. discharge pressure | MPa | 0.7 | 0.5 | 0.3 | 0.5 | 0.3 | 0.5 | 0.4 | ||
| bar | 7 | 5 | 3 | 5 | 3 | 5 | 4 | |||
| psi | 101.5 | 72.5 | 43.5 | 72.5 | 43.5 | 72.5 | 58 | |||
