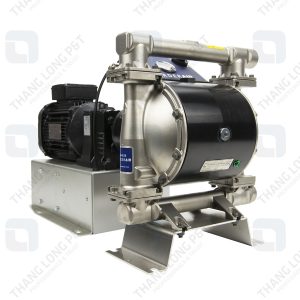

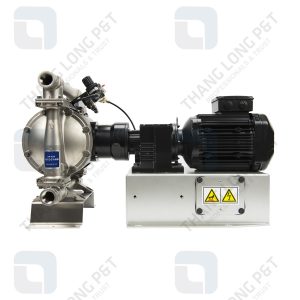

VA Electric dirven (EODD)

Technical data
– Flow 148 L/min – 378L/min
– Discharge pressure up to 7 Bar
– Max Suction lift dry up to 2.8m
– Max. Suction lift wet up to 5.5m
– Max Operating Temperature up to 135°C
– Driver Power: 1.5kw, 5.5kw
The Verderair EODD pumps (Electronic Operated Double Diaphragm pumps) combines all advantages of an AODD with the energy efficiency of an electric driven pump. Unique is the automatic stalling of the membranes against a closed discharge.
On top of that the pumps are ideal for applications that require low pulsations and a smooth flow due to the low pulse mode. The pumps are available in metallic and non-metallic materials, to be tailored for applications demanding resistance to aggressive chemicals and abrasive fluids.

*Features:
– Electrically driven
– Same liquid parts as the VA range of pumps
– Long life-time diaphragms due to center section technology
– Can stall against closed discharge
– Low pulsation mode

*Benefits:
– Energy-efficient pump solution
– Ideal for applications that require low pulsations and a smooth flow due to the low pulse mode
– Available in metallic and non-metallic materials

LIÊN HỆ VỚI CHÚNG TÔI

Nút số điện thoại liên kết tới Zalo với logo Zalo
Nút số điện thoại liên kết tới Zalo với logo Zalo

TYPE Max. flow Max. discharge pressure Max

Temperature

 Max

Particle size

 Maximum suction lift (dry)
VA – E25 non metalic 148 l/m 4,8 bar  66oC 3,2 mm 4,9 m wc
VA – E25 metalic 148 l/min 4,8 bar 135oC 3,2 mm 4,9 m wc
VA – EH25 hygienic 133 l/min 4,8 bar 104oC 4,8 mm 4,9 ft wc
VA – E50 non metalic 378 l/min 7 bar 107oC 6,3 mm
VA – E50 metalic 378 l/min 7 bar 107oC 6,3 mm
VA – EH 50 hygienic 378 l/min 7 bar 104oC 6,3  mm
