| TYPE | Max. flow | Max. discharge pressure | Air conn. | Liquid conn. | Maximum suction lift (dry) |
| VA08 non metallic | 19 l/min | 7 bar | 1/4″ BSP/NPT | 1/4″ BSP/NPT | 2,5 m wc |
| VA10 non metallic | 25 l/min | 7 bar | 1/4″ BSP/NPT | 3/8″ BSP/NPT | 3,7 m wc |
| VA15 non metallic | 57 l/min | 7 bar | 1/4″ BSP/NPT | 1/2″ BSP/NPT | 4,5 m wc |
| VA20 metallic | 61 l/min | 7 bar | 1/4″ BSP/NPT | 3/4″ BSP/NPT | 4,5 m wc |
| VA25(HE) non metallic | 189 l/min | 8,6 bar | 1/2″ BSP/NPT | Combi flange DIN PN10/16 | 4,9 m wc |
| VA25(HE) metallic | 189 l/min | 8,6 bar | 1/2″ BSP/NPT | 1″ BSP/NPT | 4,9 m wc |
| VA40 non metallic | 443 l/min | 8,4 bar | 1/2″ BSP/NPT | Combi flange DIN PN10/16 | 2,5 m wc |
| VA40 metallic | 443 l/min | 8,4 bar | 1/2″ BSP/NPT | 1 1/2″ BSP/NPT | 2,5 m wc |
| VA40(HE) non metallic | 462 l/min | 8,6 bar | 1/2″ BSP/NPT | Combi flange DIN PN10/16 | 4,9 m wc |
| VA50 non metallic | 568 l/min | 8,4 bar | 1/2″ BSP/NPT | Combi flange DIN PN10/16 | 2,5 m wc |
| VA50 metallic | 568 l/min | 8,4 bar | 1/2″ BSP/NPT | 2″ BSP/NPT | 2,5 m wc |
| VA50(HE) non metallic | 757 l/min | 8,6 bar | 3/4″ BSP/NPT | Combi flange DIN PN10/16 | 4,9 m wc |
| VA80(HE) non metallic | 1059 l/min | 7 bar | 3/4″ BSP/NPT | Combi flange DIN PN10/16 | 2,4 m wc |
| VA80(HE) metallic | 1135 l/min | 8,6 bar | 3/4″ BSP/NPT | 3″ BSP/NPT | 2,4 m wc |

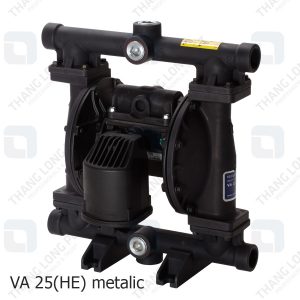

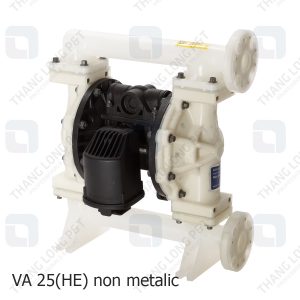

Verderair: VA25(HE) metallic-non metallic
*Technical data
– Max flow: 189 L/min
– Max discharge pressure: 8,6 Bar
– Max. Particle size : 3.2 mm
– Maximum suction lift (dry) : 4.9m wc
– Maximum suction lift (wet): 8.8 m wc
– Viscosity : 1000mPa.s
– Max temperature : 82°C
