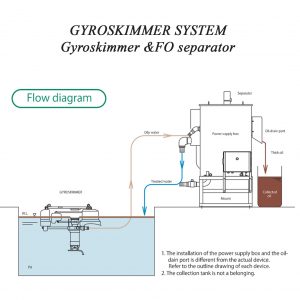

It is possible to be used in combination with GYROSKIMMER.T
There are two types of separator, small YD-200FO and large YDt-400FO
Features
– Start-and-stop of GYROSKIMMER is possible to be operated by the control panel
of the separator “FO” series built in the inverter.
– Two inverters are built in the control panel for GYROSKIMMER and the scraper.
– It is possible to collect easy foaming liquid and improve the collecting performance
by controling GYROSKIMMER with the inverter.
– It is possible to adjust the scraper optimally to the oil viscosity by controlling
the inverter.
| Model | GYROSKIMMER | Submersible pump | Separator | ||||||
| Head (m) | Collected amount (T/h) |
Output (Kw) |
Cap (L) |
Filling port (mm) |
Water drain (mm) |
Oil drain (mm) |
Scraper output (kW) |
||
| YD-600GYP-200FO | 600GYP | 4 | 0.9 | 0.15 | aprox 200 | φ25 | φ38 | φ50 | 0.04 |
| YD-**GYP-400FO | 800,810, 1000,1200GYP |
4~7 | 2.4~6 | 0.25~0.75 | aprox 400 | φ38 | φ65 | φ65 | 0.06 |
** will be contained 800,810,1000 or 1200GYP
