+ Flows to 420 m3/h (1850 US gpm)
+ Heads to 160 m (525 ft)
+ Pressures to 25 bar (365 psi)
+ Temperatures from -40°C (-40°F) to 250°C (480°F)

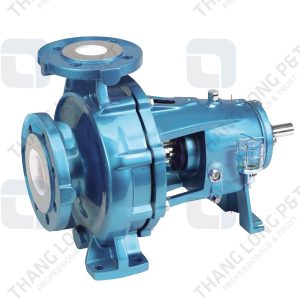

The CPXS magnetic drive process pump provides leakfree pumping of hazardous, toxic, flammable, explosive or valuable liquids.

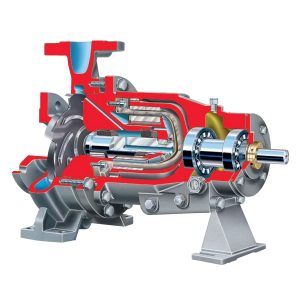

+ Precision Cast Semi-Open Impeller delivers high efficiency performance, low NPSHR, low running cost and long life.
+ High Performance Rare Earth Magnets possess superior permanent strength and proven reliability.
+ Large Inner Magnet Clearances of 1.5 mm (0.06 in) between shell and inner magnet assembly ensure effective cooling
+ Hastelloy ® Primary Containment Shell may be specified.
+ Optimized Internal Flow Paths lubricate bearings and cool magnets
